Produces various round tablets and irregular tablets.

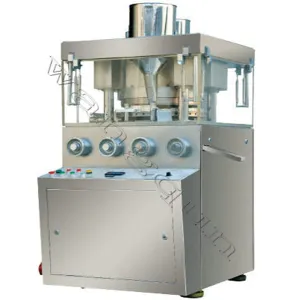

The transparent glass doors and windows allow for clear observation of the tableting process, and the side panels can be fully opened for easy cleaning and maintenance. The outer shell is fully enclosed and made of stainless steel, and the internal table is made of stainless steel to maintain surface gloss and prevent cross contamination, meeting GMP requirements.
All controls and operating elements are rationally arranged.
The frequency conversion speed regulation device is used for electrical speed regulation, which is easy to operate, rotates smoothly, safely and accurately.
The transmission system is enclosed in the oil tank below the main body of the machine. It is a completely separated independent department and will not generate oil pollution. The transmission parts are immersed in the oil pool, which is easy to dissipate heat and wear-resistant.
Equipped with a dust collector, this advanced device can automatically remove dust.
The machine's easily worn parts, such as the upper rail, feeder, hopper, drive worm, and powder meter, share a common structure with the older ZP33 model, facilitating standardization, generalization, and serialization. The punching die is compatible with the ZP17, ZP27, and ZP33D tablet presses.
Number of turntable dies | 31 pay sets |
High work pressure | 80KN |
Large tablet diameter | 22mm |
Maximum tablet thickness | 10mm |
Large filling depth | 20mm |
Large production capacity | 93,000 pieces/hour pc/h |
High turntable speed | 0-35 rpm |
Machine dimensions (L*W*H) | 980*1240*1690mm |
Machine net weight | 1850kg |
Main motor power | 4kw |
rotary tablet press ZP31D: User Feedback, Maintenance, Testing Standards, and Technical Advantages
The Rotary Tablet Press ZP31D is a high-capacity, high-precision tablet press designed for pharmaceutical, nutraceutical, and chemical industries. Its multi-station rotary system ensures uniform tablet weight, thickness, and hardness, supporting continuous high-speed production.
Engineered with stainless steel construction, advanced mechanical components, and user-friendly controls, the ZP31D offers reliable, safe, and GMP-compliant operation. This guide provides detailed insights into user feedback, inspection and maintenance, testing standards, and technical advantages, helping operators and managers optimize tablet production quality and operational efficiency.
Users report that the ZP31D consistently produces tablets with uniform weight and hardness, reducing material waste.
The multi-station rotary design allows high-speed production without compromising tablet quality.
Operators praise the intuitive digital control panel, which simplifies monitoring of speed, pressure, and tablet parameters.
Adjustable compression force and filling depth make it suitable for a wide range of tablet formulations.
Long-term users note that stainless steel construction and durable components minimize corrosion and wear.
Routine maintenance is straightforward, ensuring minimal downtime and extended equipment life.
Customers highlight the ZP31D’s balance of high throughput and precision, making it a cost-effective solution for medium-to-large production lines.
Proper inspection and maintenance are critical for ensuring consistent tablet quality and extending machine lifespan.
Check punches and dies for wear or damage.
Clean powder residues to prevent contamination.
Ensure motor and belts are functioning properly.
Inspect alignment of rotary stations.
Lubricate moving parts with food-grade or recommended lubricants.
Check electrical connections and digital control panel functionality.
Inspect compression cams, rollers, and bearings for wear.
Replace worn punches and dies to maintain GMP compliance.
Perform a full mechanical and electrical inspection.
| Interval | Task | Notes |
|---|---|---|
| Daily | Clean machine and powder residues | Prevent contamination |
| Weekly | Inspect punches, dies, and alignment | Check for wear and proper adjustment |
| Monthly | Lubricate moving parts | Use manufacturer-recommended lubricants |
| Quarterly | Inspect motor, belts, and transmission | Ensure smooth operation |
| Annually | Replace worn punches and dies | Maintain tablet uniformity and quality |
The ZP31D is designed to meet strict pharmaceutical and industrial standards, ensuring consistent tablet quality.
Tablet Weight Consistency: +/- 2% deviation acceptable
Tablet Hardness: 4–12 kP depending on formulation
Thickness: 1–3% deviation from target thickness
Capping and Lamination: Minimal occurrence
GMP (Good Manufacturing Practice) Compliant
Meets ISO standards for mechanical reliability and safety
Supports FDA and EU pharmaceutical regulations for tablet production
| Parameter | Standard Range/Requirement |
|---|---|
| Weight Variation | ±2% |
| Hardness | 4–12 kP |
| Thickness Variation | ±1–3% |
| Capping/Lamination | <1% incidence |
| GMP Compliance | Required |
| ISO Certification | Mechanical and safety standards |
The ZP31D rotary tablet press offers multiple technical advantages that enhance productivity and quality:
Multi-station rotary system enables production of up to 35,000 tablets per hour.
Reduces downtime with efficient die and punch setup.
Adjustable compression force ensures consistent tablet weight, hardness, and thickness.
Minimizes defects such as capping, lamination, or chipping.
Stainless steel frame and components ensure resistance to corrosion and wear.
Smooth surfaces allow easy cleaning and maintenance.
Digital control panel allows precise monitoring and adjustment of operational parameters.
Alarm system alerts operators to overload, motor overheating, or mechanical issues.
Optimized motor and transmission reduce energy consumption by up to 20%.
Variable speed control and intelligent load monitoring support eco-friendly operations.
The ZP31D is versatile and suitable for multiple industrial applications:
Pharmaceutical Industry: Production of tablets including vitamins, analgesics, antibiotics, and supplements.
Nutraceutical Industry: Tablets for dietary supplements and herbal formulations.
Chemical Industry: Compressing powdered chemicals for easy handling and transport.
Research & Development: Pilot-scale production for new formulations and experimental tablets.
The Rotary Tablet Press ZP31D is a high-capacity, precise, and reliable tablet press for pharmaceutical, nutraceutical, and chemical production.
With its robust technical specifications, user-friendly controls, adherence to testing standards, and energy-efficient design, it ensures consistent tablet quality, reduced downtime, and long-term operational reliability.
By following proper inspection, maintenance, and testing protocols, operators can maximize production efficiency, tablet uniformity, and overall machine lifespan, making ZP31D a smart investment for modern tablet manufacturing facilities.
