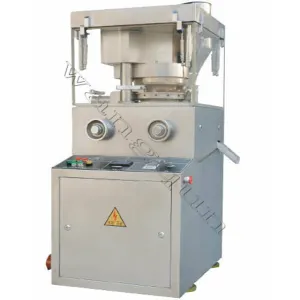

1. This machine is an automatic rotary continuous tablet press, widely used in pharmaceutical, chemical, ceramic, food, electronics, plastic and powder metallurgy industries.
2. This machine is suitable for pressing various granular raw materials into tablets, but is not suitable for pressing semi-solid, moist molecules and non-granular ultra-fine powders.
Working principle and structural characteristics
1.The machine is driven by an electric motor (stepless speed regulation controlled by a frequency converter) → pulley drive → worm drive → the main shaft drives the turntable to rotate clockwise.
3. When the machine is working, the turntable drives 19 pairs of dies to rotate clockwise, and the upper and lower dies move up and down along the curved track, and the pressure action is completed by the pressure wheel.
4. The upper and lower pressure wheel devices adopt rolling friction, which is beneficial to reduce working resistance and power consumption.
5. The safety unloading device of the pressure wheel is on the lower pressure wheel shaft and is balanced by a spring. Its working pressure is adjusted by the spring sleeve. When the pressure is over, the spring sleeve automatically jumps to unload and also plays a role in protecting the punch rod.
6. The control and adjustment of each part such as filling, tablet thickness and speed are all centrally controlled, which is easy to operate.
7. This machine adopts closed oil-lubricated worm and worm gear transmission to reduce power loss and extend its service life.
8.The peripheral components of this machine adopt a fully enclosed structure, which completely separates the sealed tablet pressing chamber and the driving mechanism, prevents dust from flying and avoids cross contamination of oil.
9. Equipped with a dust collector, which can automatically remove dust.
Number of turntable dies | 19 pay sets |
Maximum tableting pressure | 60 kN |
Large tablet diameter | 20 mm |
Large filling depth | 12 mm |
Maximum tablet thickness | 6 mm |
Diameter of upper and lower punches | 22 mm |
Upper and lower punch length | 115 mm |
Middle die thickness | 22 mm |
Middle die diameter | 26 mm |
Large tablet production | 34,000 pieces/hour |
Machine dimensions (L*W*H) | 820*610*1680 mm |
Machine net weight | 860kg |
Motor power | 3kw |
Motor speed | 1440 rpm |
Voltage | 380V |
rotary tablet press ZP19D: Fault Maintenance, Technical Specifications, Performance, and Energy Standards
The Rotary Tablet Press ZP19D is a high-performance, precision-engineered tablet press designed for pharmaceutical, nutraceutical, and chemical industries. Its multi-station rotary system ensures consistent tablet weight, thickness, and hardness, supporting high-speed production while complying with GMP standards.
This guide provides a comprehensive overview of fault maintenance procedures, technical specifications, product performance features, and energy-saving standards, helping manufacturers optimize productivity, safety, and operational efficiency.
The ZP19D is engineered to deliver high throughput and precise tablet quality, suitable for a variety of formulations.
| Parameter | Value | Unit |
|---|---|---|
| Maximum Compression Force | 65 | kN |
| Maximum Tablet Diameter | 19 | mm |
| Maximum Filling Depth | 18 | mm |
| Production Capacity | 20,000–30,000 | tablets/hr |
| Motor Power | 3.0 | kW |
| Machine Weight | 1,350 | kg |
| Voltage | 380 | V |
| Frequency | 50/60 | Hz |
| Die Stations | 19 | pcs |
Digital Control Panel: Monitors pressure, speed, and operational status in real-time.
Adjustable Compression Force: Compatible with hard, soft, and coated tablets.
Stainless Steel Construction: Ensures corrosion resistance and hygienic operation.
Multi-Station Rotary Design: Increases efficiency while maintaining uniform tablet quality.
The ZP19D offers reliable, high-speed, and high-quality tablet production, meeting diverse industrial needs.
Maintains uniform weight, thickness, and hardness.
Minimizes risks of capping, lamination, or chipping.
Multi-station rotary system allows simultaneous compression across multiple dies.
Production rates up to 30,000 tablets per hour, optimizing workflow and reducing downtime.
Digital interface enables easy adjustment of speed, pressure, and operational parameters.
Alarm notifications for overload, overheating, or mechanical faults.
Stainless steel construction and smooth surfaces allow easy cleaning and long service life.
Designed to meet GMP and industry hygiene standards.
Emergency stop buttons and interlocks prevent accidental operation.
Overload protection safeguards motors and mechanical components.
The ZP19D is designed for efficient energy use, reducing operational costs and environmental impact.
Optimized Motor Design: High-efficiency motors reduce energy consumption by up to 20% compared to standard models.
Variable Speed Control: Operators can adjust production speed to match demand, avoiding unnecessary energy use.
Intelligent Load Monitoring: Automatically adjusts compression force to minimize energy waste.
GMP-Compliant Efficiency: Energy-saving features comply with modern environmental and industrial standards.
Proper maintenance ensures consistent tablet quality and prolonged machine life. The following table outlines common issues and solutions:
| Issue | Possible Cause | Recommended Action |
|---|---|---|
| Inconsistent tablet weight | Incorrect pressure or filling depth | Adjust compression force, recalibrate dies |
| Tablets sticking to punches | Moisture in powder or inadequate lubrication | Dry material, lubricate punches |
| Excessive vibration | Loose components or misalignment | Tighten bolts, realign machine |
| Machine not starting | Electrical supply or fuse issues | Check power connection, reset breaker |
| Abnormal noise or grinding | Worn bearings or punch/die damage | Inspect and replace faulty components |
| Motor overheating | Overload or blocked ventilation | Reduce load, clean ventilation |
Recommended Maintenance Schedule
| Interval | Task | Notes |
|---|---|---|
| Daily | Clean machine and powder residues | Prevent contamination |
| Weekly | Inspect punches and dies | Check wear and alignment |
| Monthly | Lubricate moving parts | Use recommended lubricants |
| Quarterly | Check motor, belts, and transmission | Ensure smooth operation |
| Biannually | Inspect control panel and sensors | Update software and calibrate if needed |
| Annually | Replace worn punches and dies | Maintain GMP compliance and tablet uniformity |
Pre-Installation Preparation
Ensure a flat, vibration-free surface.
Verify electrical supply matches ZP19D specifications.
Maintain ambient temperature 20–30°C and humidity below 70%.
Positioning and Alignment
Place machine on stable floor; use a spirit level for horizontal alignment.
Install vibration isolation pads if necessary.
Initial Test Run
Conduct a dry run without material to check mechanical function.
Observe for abnormal noise, vibration, or motor overheating.
Operational Best Practices
Start at low speed and gradually increase.
Monitor tablet quality, adjusting pressure as needed.
Regularly inspect and lubricate moving parts.
The Rotary Tablet Press ZP19D is a high-efficiency, precision tablet press ideal for pharmaceutical, nutraceutical, and chemical production. Its advanced technical specifications, reliable performance, and energy-saving features make it a cost-effective and GMP-compliant solution.
By adhering to the recommended maintenance schedule, fault troubleshooting procedures, and operational guidelines, operators can ensure consistent tablet quality, reduced downtime, and extended machine lifespan. The ZP19D represents a reliable investment for modern tablet production facilities seeking efficiency, precision, and sustainability.
